DETAILS

• Platform

  Mavaro Neo
• Model Name

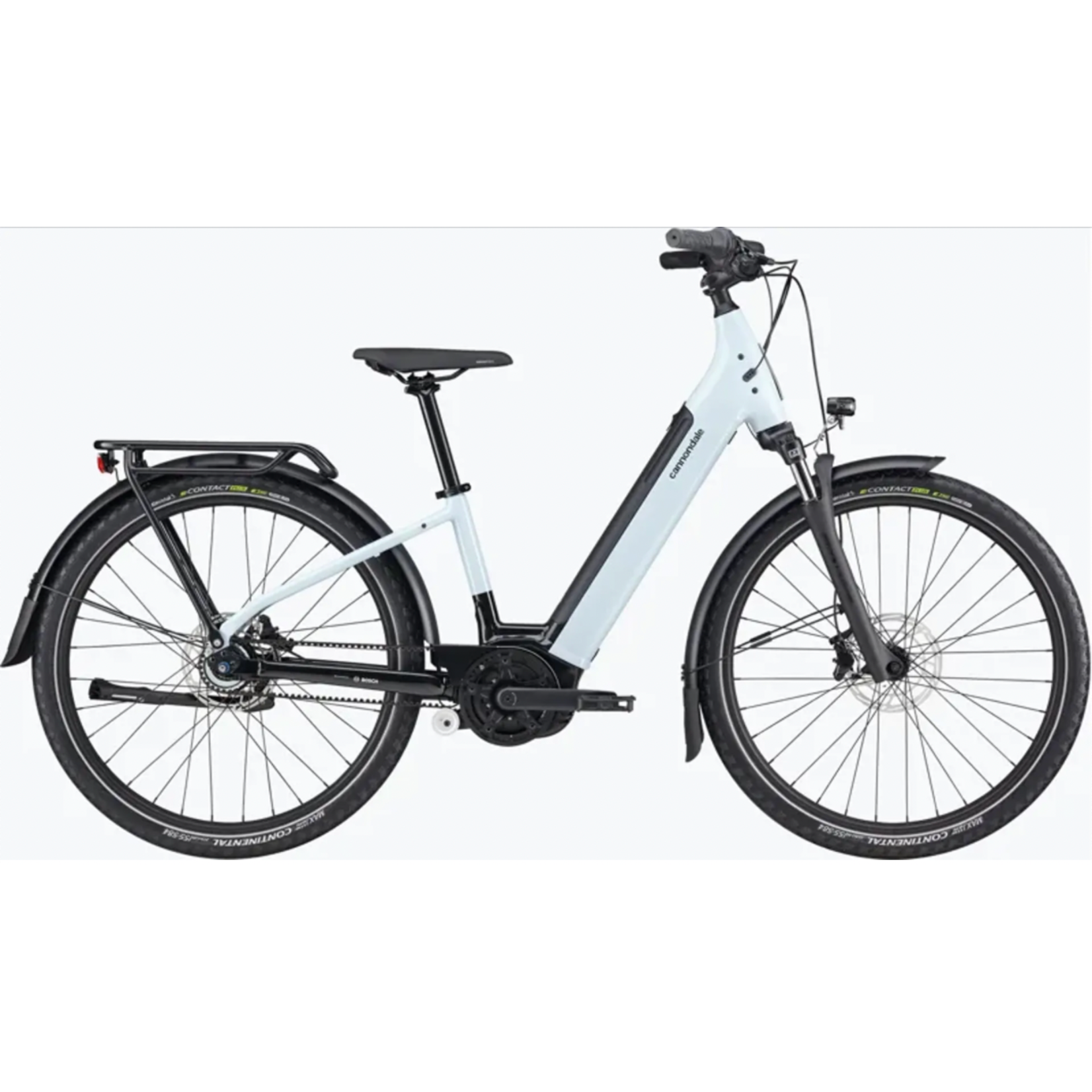

  Mavaro 3 Low StepThru
• Model Code

  C68353U

FRAMESET

• Frame

  SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
• Fork

  SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
• Headset

  Semi-Integrated, Tapered; 1-1/8"-1-1/2"

E-SYSTEM

• Drive Unit

  Bosch Active Line Plus, Smart System, 20mph
• Battery

  Bosch PowerTube, 500Wh
• Charger

  Bosch 4A
• Display

  Bosch Purion 200
• Certifications

  UL 2849

DRIVETRAIN

• Rear Derailleur

  Shimano Nexus 7, internal gear hub
• Shifters

  Shimano Nexus, 7-speed, twist style
• Chain

  Gates CDX Carbon Belt
• Crank

  FSA for Bosch
• Rear Cogs

  Gates CDC 26T

BRAKES

• Brakes

  Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
• Brake Levers

  Riderever Attack-U-OE, hydraulic disc

WHEELS

• Rims

  Alloy, double wall, 32 hole, 25mm internal width, disc-specific
• Spokes

  Stainless Steel, 14g
• Tire Size

  29x2.3
• Wheel Size

  27.5/29
• Hubs

  (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus 7, 7-speed internal gear hub
• Tires

  Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)

COMPONENTS

• Handlebar

  Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm
• Stem

  Cannondale 3, Alloy, 31.8mm clamp
• Grips

  Cannondale Ergo Fitness Dual Density, Lock-on
• Saddle

  Fizik Essenza Moderate M
• Seatpost

  Cannondale 3, 6061 Alloy, 31.6

EXTRA

• Extra 1

  Axa Compactline 35E front light, Axa Blueline rear light, Tubus rear rack (25kg, Racktime SnapIt 1.0 compatible), full-coverage fenders
