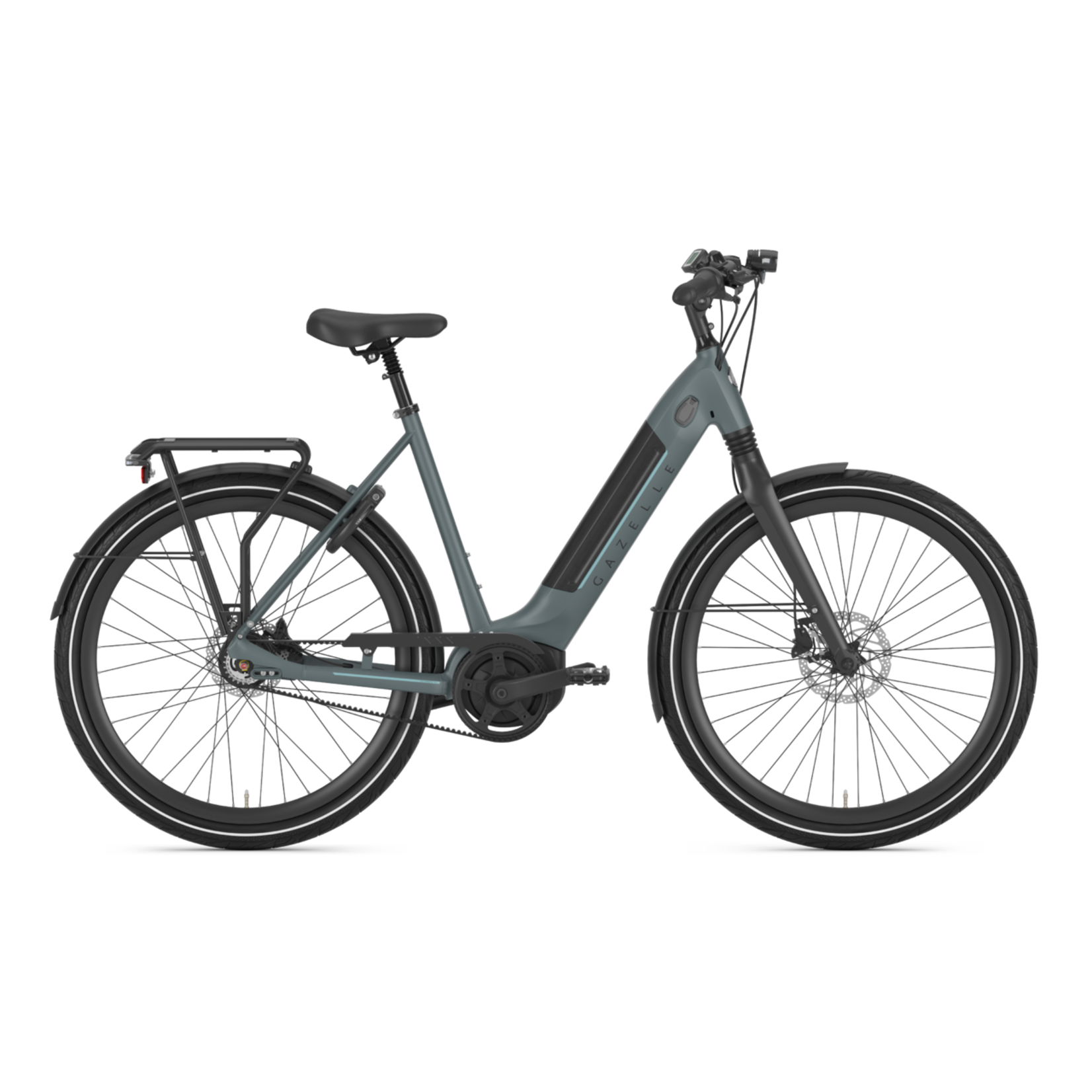

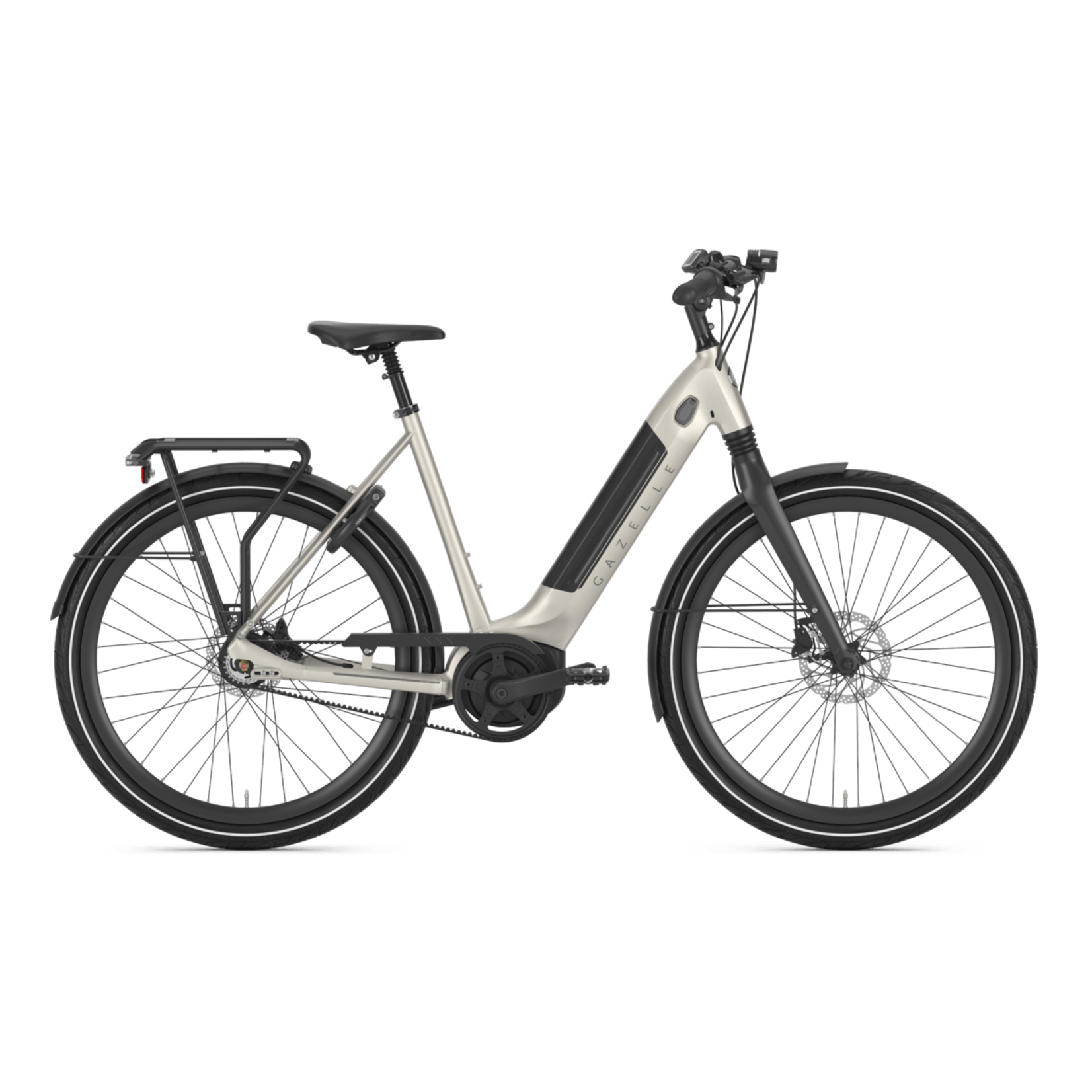

Discover the Gazelle Ultimate C8 HMB
The Gazelle Ultimate C8 HMB cleverly combines a sporty look with a comfortable ride-feel. Characterized by its innovative and dynamic design, the Ultimate is a feast for the eyes and a delight for the body. Offering confidence-boosting stability on the road thanks to a low center of gravity and exceptional frame stiffness, and relaxing, upright posture, the Gazelle Ultimate C8 HMB is the perfect bike for riders of all abilities and experience.
- Reliable assistance thanks to a Bosch Active Line Plus motor with 50 Nm of torque (20 mph) and 500 Wh integrated battery
- A super stable and rigid frame provides an optimal handling experience
- High-grade Shimano disc brakes for optimal braking performance
- Durable, low maintenance Nexus 8 hub and Gates belt drive
Shift effortlessly
A Gates belt drive, a first for our North American fleet, offers smooth, near silent shifting, excellent durability, and low-maintenance ease.
Ride in comfort
Wide, puncture-resistant tires, a suspension seat post and headset, and luxe leather ergonomic grips enhance the riding experience, no matter how rough the road.
Attract admirers
The graceful step-through frame with a beautifully integrated in-tube battery offers stability, accessibility, and sleek sophistication. This e-bike is a stunner!
Our powerful battery provides excellent range
| |
Platinum |
| Maximum range |
70 mi |
| Watt-hours |
500 Wh |
| Capacity |
13,4 Ah |
| Eco range |
70 mi |
| Tour range |
45 mi |
| Sport range |
35 mi |
| Turbo range |
25 mi |
Bosch Active Line Plus 3.0 (50Nm)
The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.
Specifications of Gazelle Ultimate C8 HMB
- Gear system description 8-speed Shimano Nexus
- Engine model Bosch Active Line Plus 3.0 (50Nm)
- Brake system hydraulic brakes, 2 piston
- Name Gazelle Ultimate
- Colorname petrol, sienna light
- Fork suspension type internal to headset
- Name Gazelle Ultimate
- Weight in Lb. 53.8
- Colorname petrol, sienna light
- Segment Electric bicycles
- Sitting position Active
Frame
- Frame shape low-step
- Size 46, 53, 57
- Frame description Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material Aluminium
Fork
- Fork material Aluminium
- Fork suspension type internal to headset
- Travel Fork 40 mm
Wheels
- Wheelsize 28"
- Rims Ryde Dutch
Tires
- Tires Schwalbe Energizer Plus
- Tire color black
Gears
- Gear system description 8-speed Shimano Nexus
- Gear type hub
- Gears 8
- Front chainwheel 55
- Rear chainwheel 26
Drivetrain
Brakes
- Brake Front disc brake with hydraulic control
- Brake Rear Disc brake with hydraulic control
Handlebar
- Handlebar description Aluminium, slightly curved model
- Adjustable stem Yes
- Grip type Gazelle Aero leather
- Grips Luxury leather handlebar grips for a sophisticated feel and extra comfort
Saddle
- Saddle Selle Royal Loire
- Seatpost suspension Yes
Engine
- Ebike system short description Bosch
- Engine location mid-drive motor
- Torque 50
- Engine model Bosch Active Line Plus 3.0 (50Nm)
- Max speed (mph) Class 1 (20 mph) pedal assist
- Ebike sensors rotation sensor, speed sensor, pedal force sensor
Battery
- Battery type Li-ion
- Battery position Integrated into frame
- Battery replaceable Yes
- Battery system Bosch
Display
- Amount of support levels 4
- Walk assist Yes
- Display Model Bosch Purion LCD
Garantie
- Warranty frame 10 years’ guarantee
- Warranty fork 5 years’ guarantee
- Warranty paint 5 years’ guarantee
- Warranty battery 2 years’ guarantee
- Warranty motor 2 years’ guarantee
- Warranty diplay 2 years’ guarantee
- Warranty other parts 2 years’ guarantee
Lock
- Lock description Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
- Lock safety level ART ** certified
- Lock Type AXA Defender
Other
- Chaincase description Aluminum
- Kickstand type drop-down rear stand
Carrier
- Rear carrier description Gazelle commuter, aluminium
