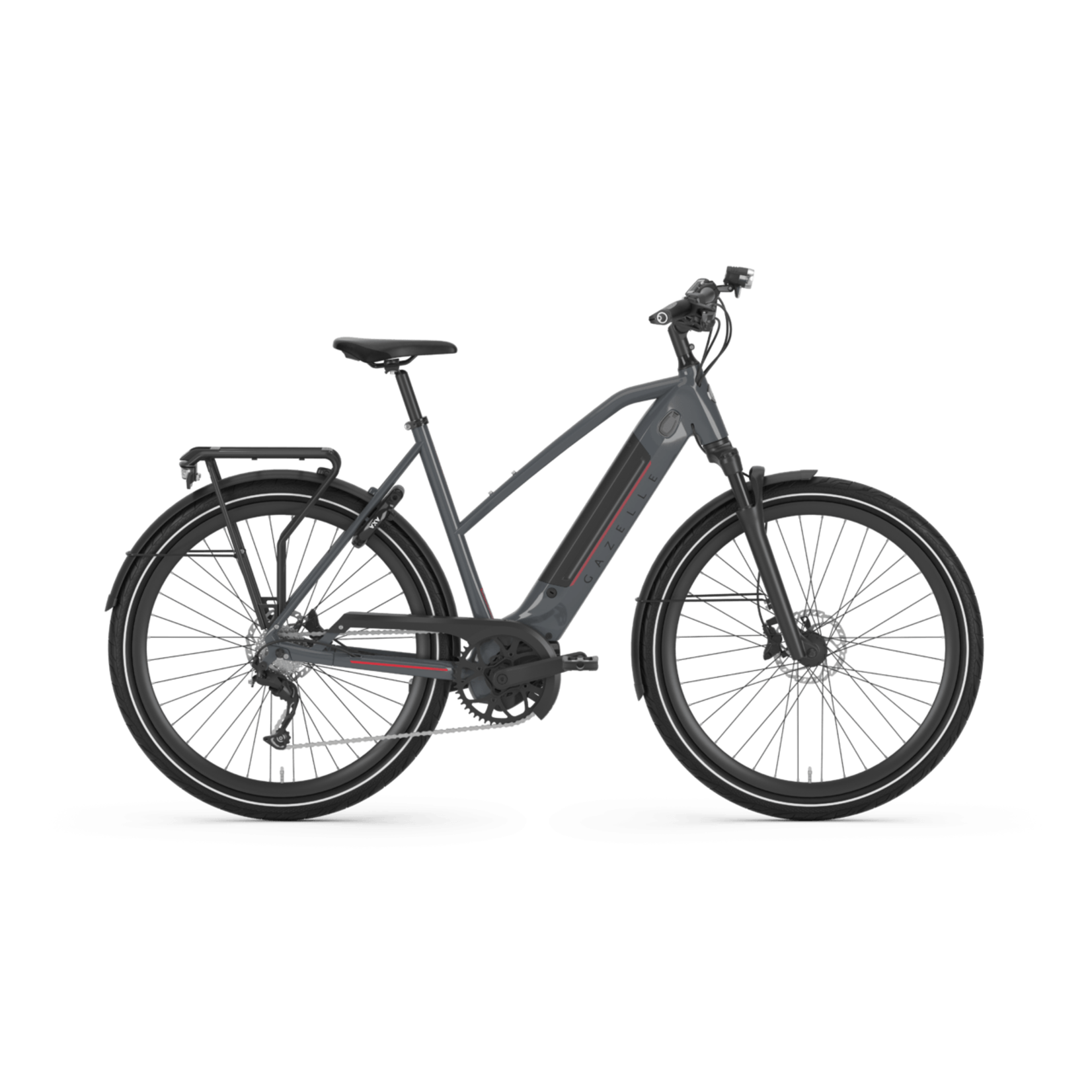

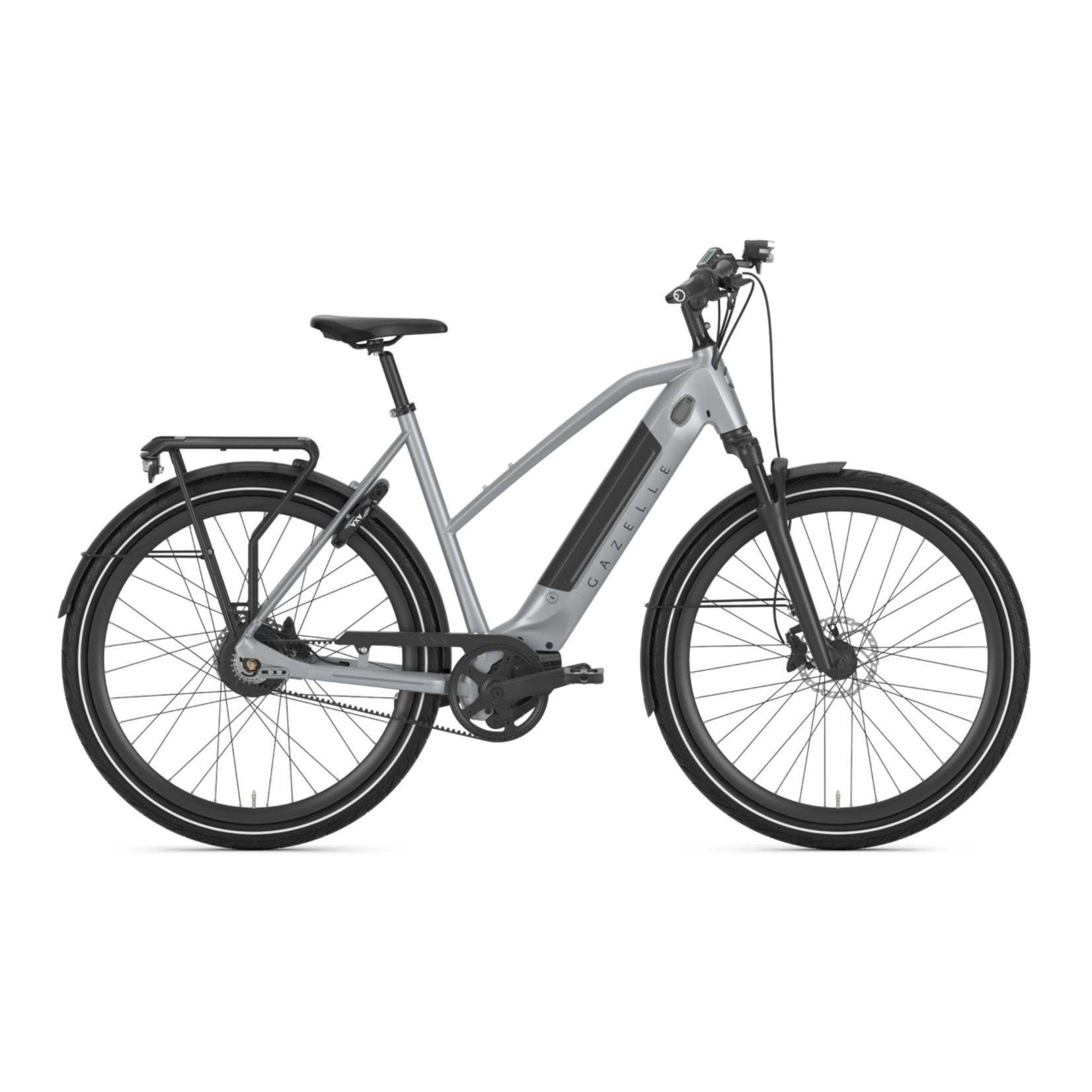

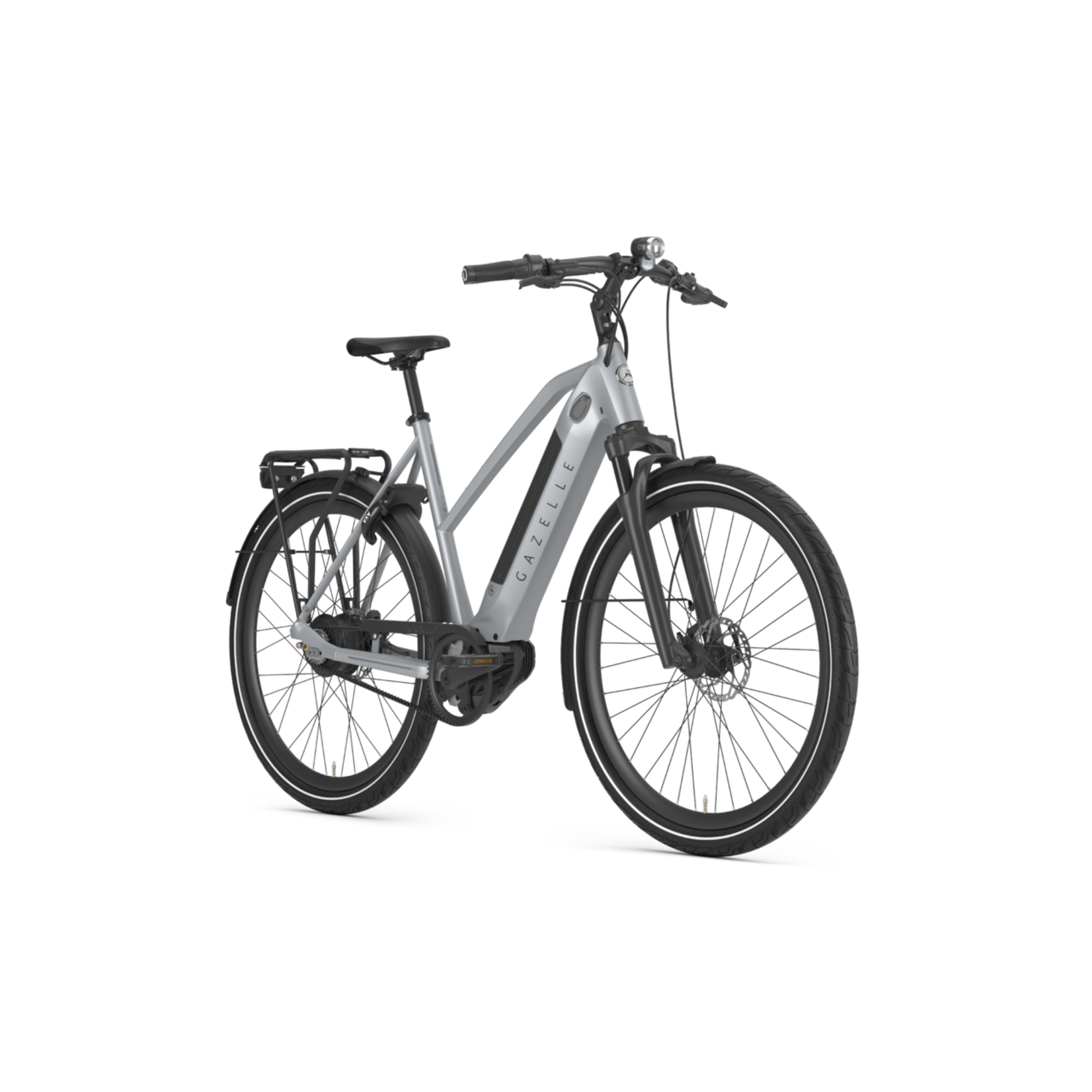

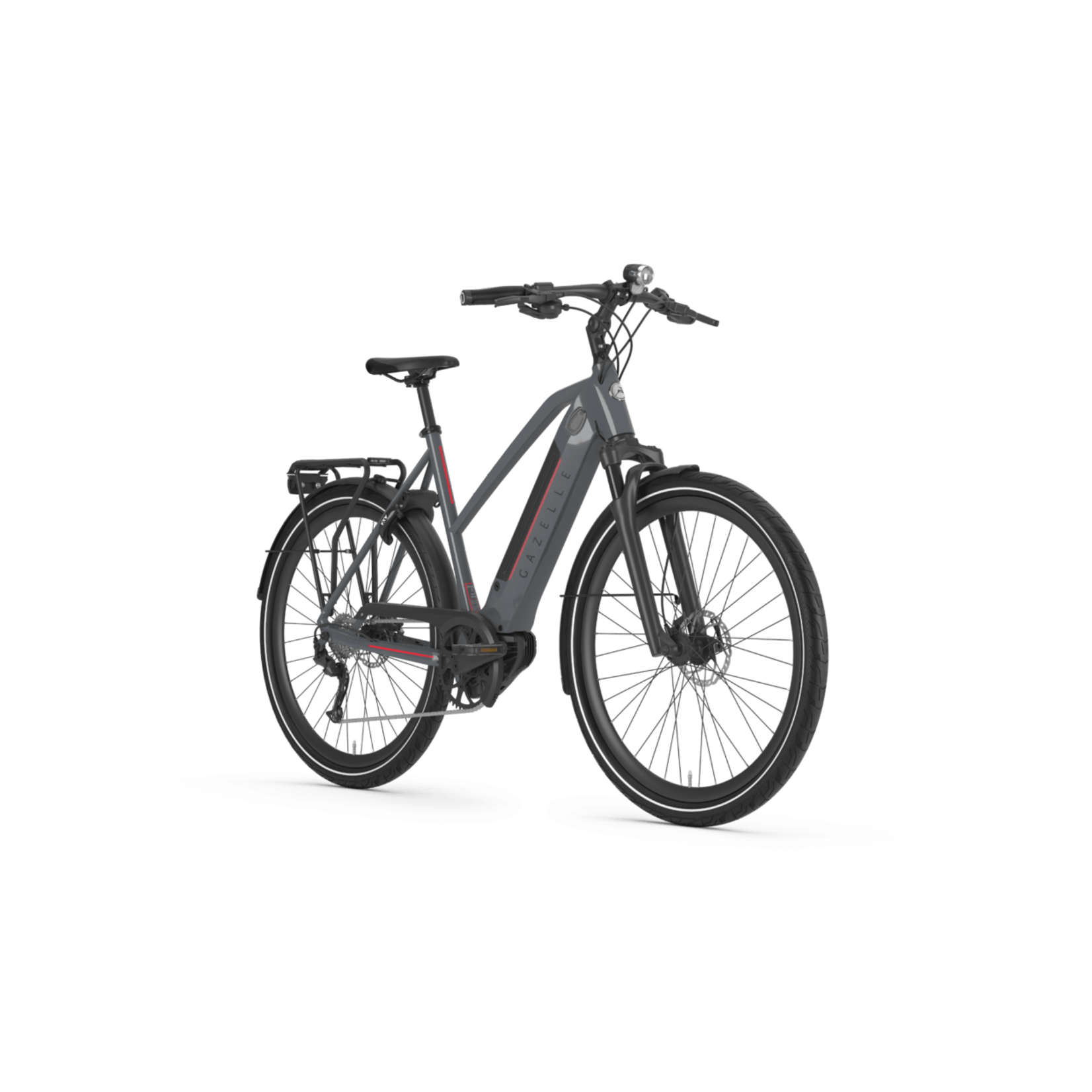

Gazelle Ultimate T10+ HMB

Discover the Gazelle Ultimate T10+ HMB

Arrive at work fast and relaxed with the Ultimate T10+ HMB. A dynamic contemporary design combined with the integrated motor and battery give the Gazelle Ultimate T10+ HMB a striking yet stylish presence. The aluminum frame is exceedingly stable, which translates into sporty handling and optimum agility. In addition to high-grade components, a high comfort level has been achieved by using puncture-resistant tires, ergonomic handlebar grips and a suspension front fork.

Available in 2 colors

Bosch Performance Line Speed motor (85 Nm) providing support up to 28 mph with integrated 500 Wh battery
Great quality derailleur and powerful disc brakes for a sporty and confident performance
Suspension front fork, wide tires, and a relaxed posture provide extra comfort
Dual battery capability doubles range potential

Specifications of Gazelle Ultimate T10+ HMB

Highlights

Gear system description 10-speed Shimano Deore
Engine model Bosch Performance Line Speed (85 Nm)
Brake system hydraulic brakes, 4 piston
Name Gazelle Ultimate
Colorname champion red, dust light
Fork suspension type telescopic

General

Name Gazelle Ultimate
Weight in Lb. 51.1
Colorname champion red, dust light
Segment Electric bicycles
Sitting position Sporty

Frame & Fork

FRAME

Frame shape High-step, Mid-step
Size 46, 53, 57
Frame description Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame material Aluminium

FORK

Fork material Aluminium
Fork suspension type telescopic
Travel Fork 80 mm

Wheels & Tires

WHEELS

Wheelsize 28"
Rims Ryde Dutch

TIRES

Tires Schwalbe Energizer Plus
Tire color black

Brake & transmission

GEARS

Gear system description 10-speed Shimano Deore
Gear type derailleur
Gears 10
Rear derailleur Shimano Deore
Front chainwheel 48
Rear chainwheel 11-36

DRIVETRAIN

Drivetrain Chain

BRAKES

Brake Front disc brake with hydraulic control
Brake Rear Disc brake with hydraulic control

Handlebar & Seat

HANDLEBAR

Handlebar description Aluminium, slightly curved model
Adjustable stem Yes
Grip type Ergon GP1-L, ergonomic
Grips Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands

SADDLE

Saddle Selle Royal Essenza

E-bike technology

ENGINE

Ebike system short description Bosch
Engine location mid-drive motor
Max speed (mph) Class 3 (28 mph) pedal assist
Torque 85
Engine model Bosch Performance Line Speed (85 Nm)
Ebike sensors rotation sensor, speed sensor, pedal force sensor

BATTERY

Battery type Li-ion
Battery position Integrated into frame
Battery replaceable Yes
Battery system Bosch

DISPLAY

Amount of support levels 4
Display control unit Yes
Walk assist Yes
Display Model Bosch Purion LCD

Service

GARANTIE

Warranty frame 10 years’ guarantee
Warranty fork 5 years’ guarantee
Warranty paint 5 years’ guarantee
Warranty battery 2 years’ guarantee
Warranty motor 2 years’ guarantee
Warranty diplay 2 years’ guarantee
Warranty other parts 2 years’ guarantee

Other

LOCK

Lock description Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
Lock safety level ART ** certified
Lock Type AXA Defender

OTHER

Chaincase description Aluminum
Kickstand type drop-down rear stand

CARRIER

Rear carrier description Gazelle commuter, aluminium
