Discover the Gazelle Ultimate T10 HMB

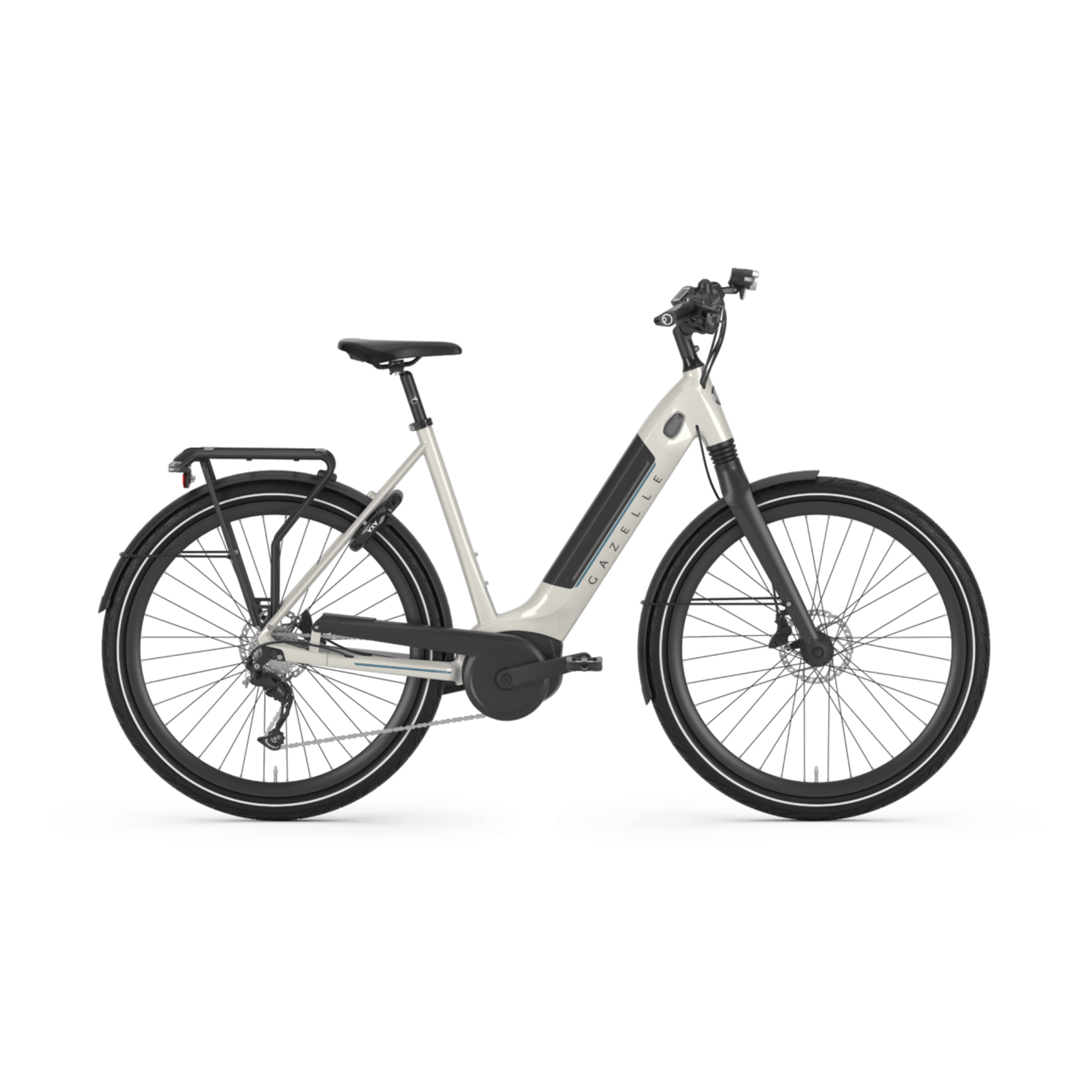

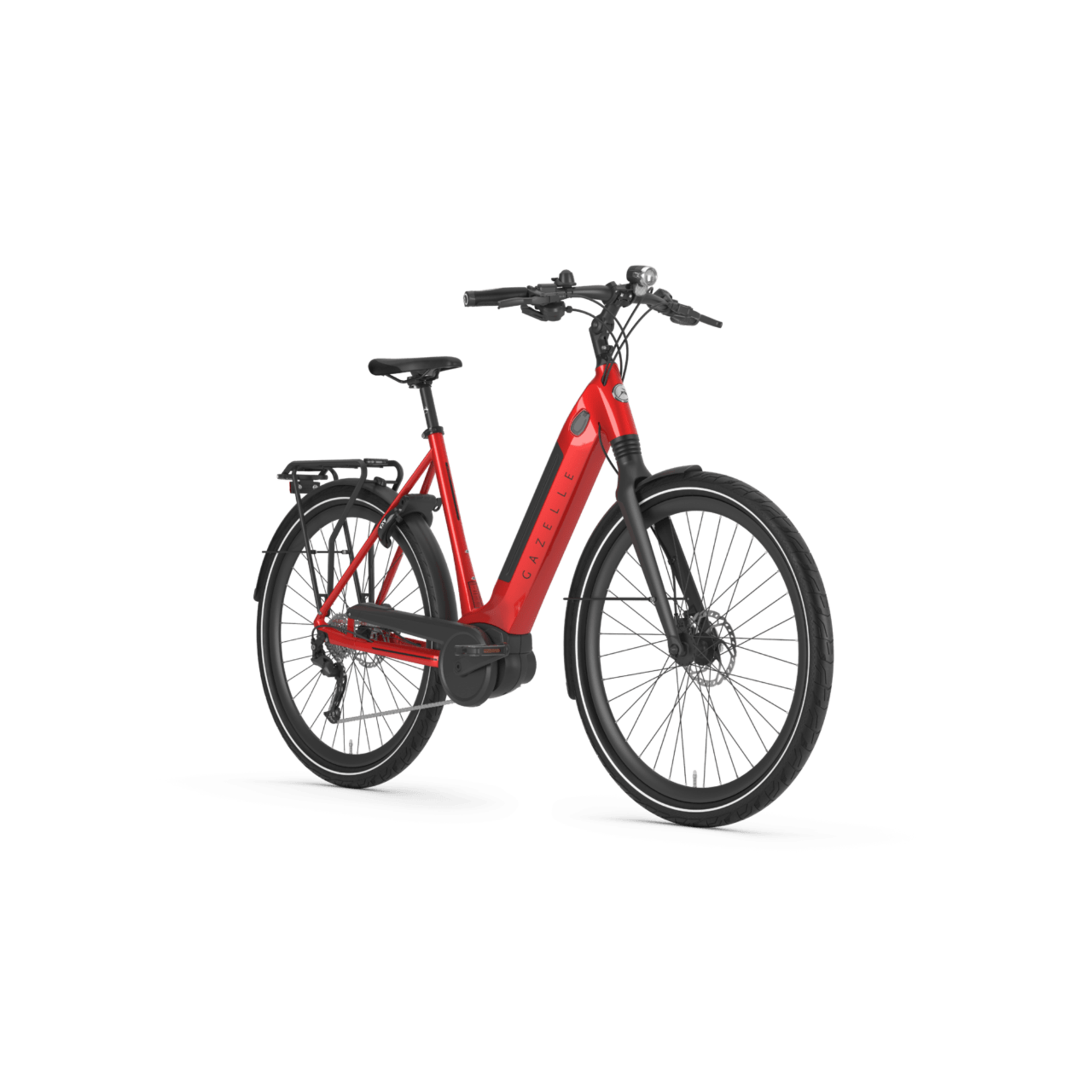

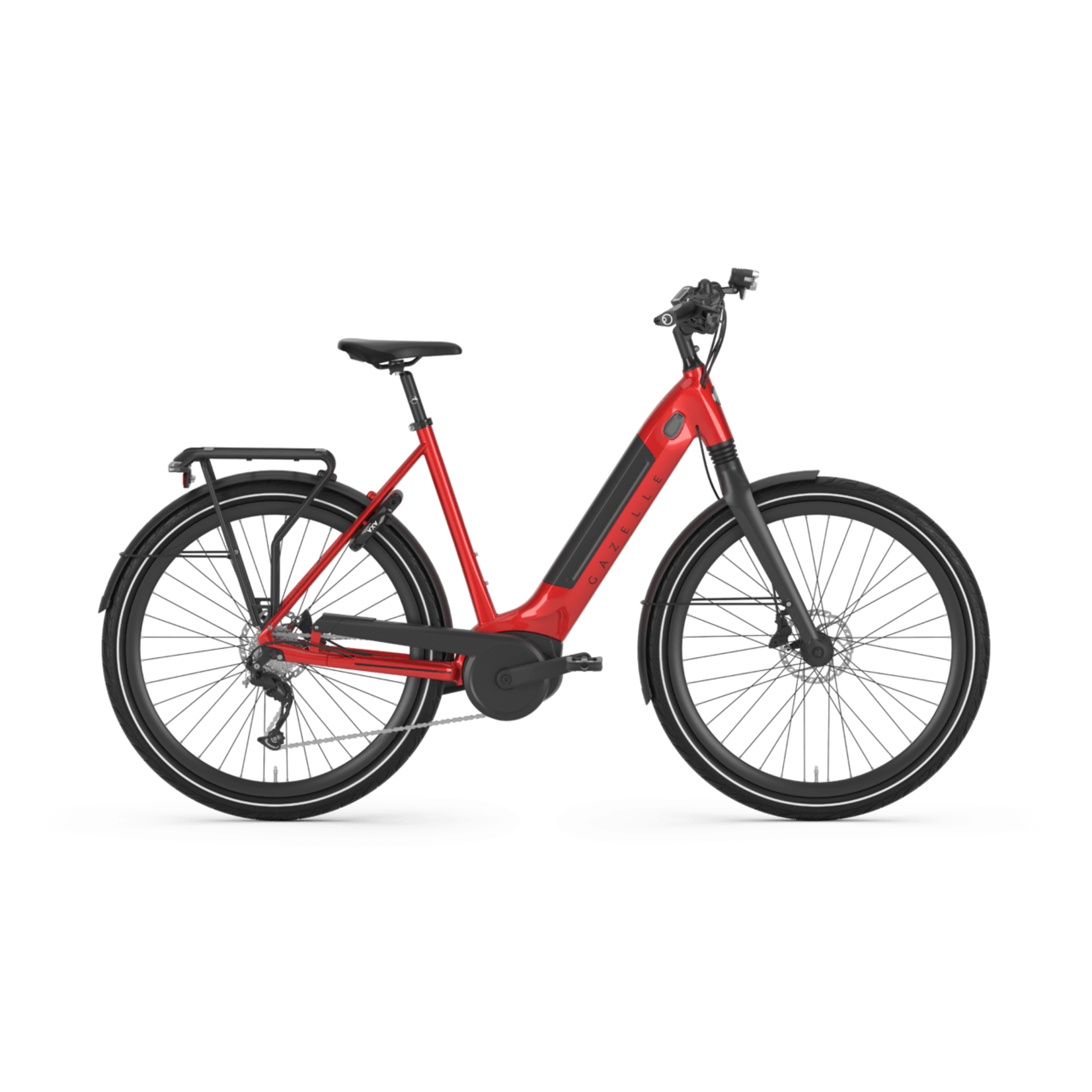

The Gazelle Ultimate T10 is a top of the range trekking e-bike, refined down to the last detail. The first-class groupset including Shimano Deore, Bosch Performance line and ergonomically-shaped handlebar grips enable sporty performance to be achieved. The Ultimate T10 HMB is delightfully stable on the road thanks to the battery and motor integration plus the rigidity of the frame. The dynamic design, high level of comfort and excellent handling make this bike the ideal companion for long recreational trips.
High comfort
The integrated suspension front fork provides a smooth and comfortable ride, even on poor road surfaces.
Integrated battery
The integrated in-tube design offers a sleek and sporty look, and the 500Wh battery provides extensive range.
Powerful assistance
The Bosch Performance Line motor creates a smooth ride with powerful assistance (65Nm of torque) for effortless cycling.
Our powerful battery provides excellent range
| |
Platinum |
| Maximum range |
70 mi |
| Watt-hours |
500 Wh |
| Capacity |
13,4 Ah |
| Eco range |
70 mi |
| Tour range |
40 mi |
| Sport range |
30 mi |
| Turbo range |
25 mi |
Bosch Performance Line 3.0 (65 Nm)
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 65 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Specifications of Gazelle Ultimate T10 HMB
- Engine model Bosch Performance Line 3.0 (65 Nm)
- Brake system hydraulic brakes, 4 piston
- Name Gazelle Ultimate
- Colorname champion red, dust light, ivory
- Fork suspension type internal to headset
- Name Gazelle Ultimate
- Weight in Lb. 50.7
- Colorname champion red, dust light, ivory
- Segment Electric bicycles
- Sitting position Sporty
Frame
- Frame shape High-step, low-step
- Size 46, 53, 57
- Frame description Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material Aluminium
Fork
- Fork material Aluminium
- Fork suspension type internal to headset
- Travel Fork 40 mm
Wheels
- Wheelsize 28"
- Rims Ryde Dutch
Tires
- Tires Schwalbe Energizer Plus
- Tire color black
Gears
- Gear type derailleur
- Gears 10
- Rear derailleur Shimano Deore
- Front chainwheel 38
- Rear chainwheel 11-36
Drivetrain
Brakes
- Brake Front disc brake with hydraulic control
- Brake Rear Disc brake with hydraulic control
Handlebar
- Handlebar description Aluminium, slightly curved model
- Adjustable stem Yes
- Grip type Ergon GP1-L, ergonomic
- Grips Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Saddle
Engine
- Ebike system short description Bosch
- Engine location mid-drive motor
- Torque 65
- Engine model Bosch Performance Line 3.0 (65 Nm)
- Max speed (mph) Class 1 (20 mph) pedal assist
- Ebike sensors rotation sensor, speed sensor, pedal force sensor
Battery
- Battery type Li-ion
- Battery position Integrated into frame
- Battery replaceable Yes
- Battery system Bosch
Display
- Amount of support levels 4
- Walk assist Yes
- Display Model Bosch Purion LCD
Garantie
- Warranty frame 10 years’ guarantee
- Warranty fork 5 years’ guarantee
- Warranty paint 5 years’ guarantee
- Warranty battery 2 years’ guarantee
- Warranty motor 2 years’ guarantee
- Warranty diplay 2 years’ guarantee
- Warranty other parts 2 years’ guarantee
Lock
- Lock description Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
- Lock safety level ART ** certified
- Lock Type AXA Defender
Other
- Chaincase description Aluminum
- Kickstand type drop-down rear stand
Carrier
- Rear carrier description Aluminum
