  • Trek Trek Checkpoint ALR 5 2025 (was $2499.99)

Trek Checkpoint ALR 5 2025 (was $2499.99)

$2,499.99
Excl. tax

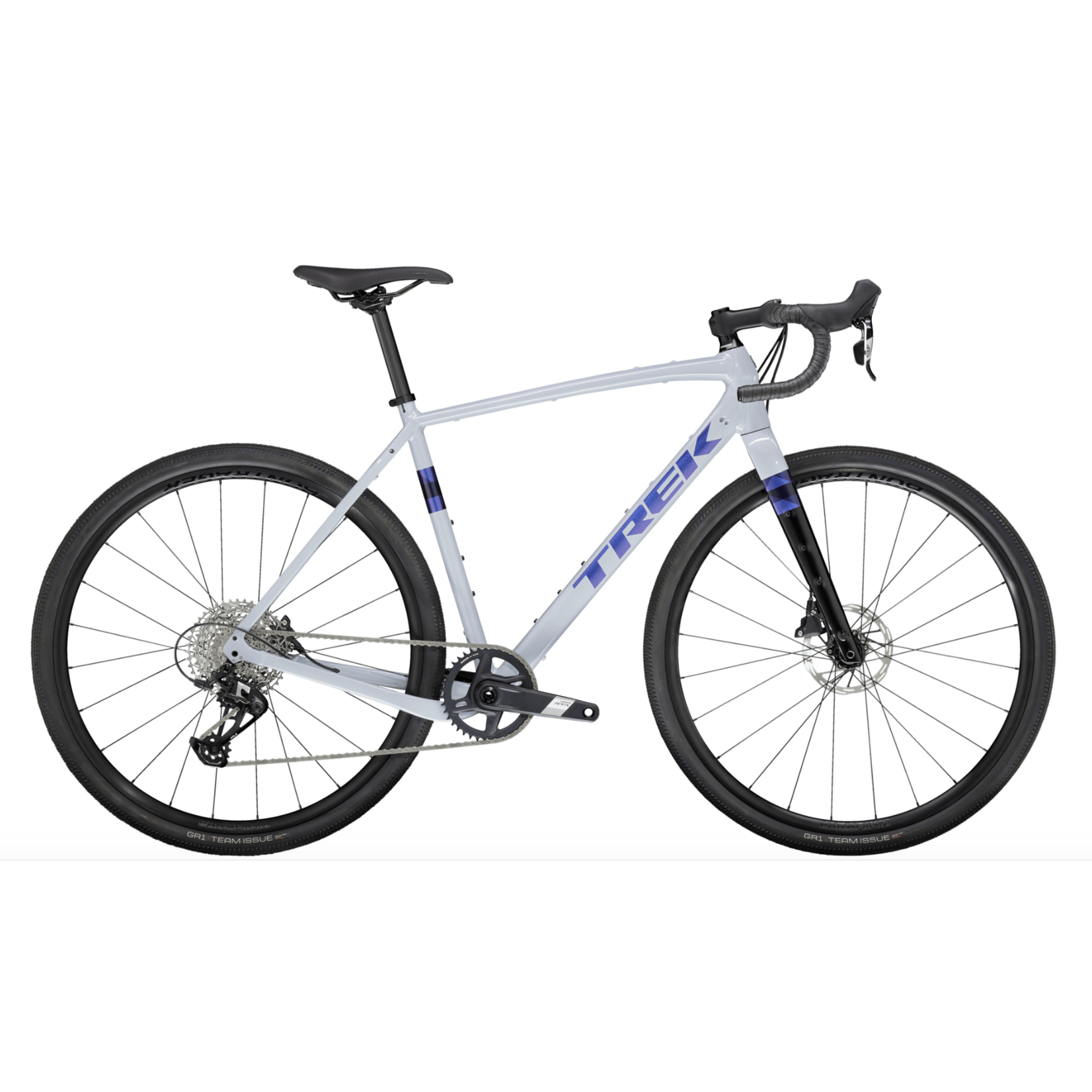

Checkpoint ALR 5 is an adventure-ready alloy gravel bike that's kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth pavement.

In stock (1) (Delivery timeframe:Pick-up in store only)
swap-horizontal Add to compare

Checkpoint ALR 5 is an adventure-ready alloy gravel bike that's kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth pavement. A wealth of features like loads of mounts for bags and racks, and a SRAM Apex 1x12 drivetrain makes this Checkpoint ready to customize for your next adventure.



Weight
56 - 9.71 kg / 21.41 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter
SRAM Apex, 12 speed
Rear derailleur
SRAM Apex XPLR, 44T max cog
*Crank
Size: 49
SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: 52
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: 54, 56
SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Size: 58, 61
SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XPLR PG-1231, 11-44, 12 speed
Chain
SRAM Apex, 12 speed
Max chainring size
1x: 44T (SRAM), 50T (Shimano), 2x: 50/34

Hub front
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front
Bontrager Switch thru axle
Hub rear
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tire
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire part
Bontrager TLR sealant, 6oz
Rim strip
Bontrager TLR
Max tire size
See service manual

*Saddle
Size: 49, 52
Bontrager Verse Comp, steel rails, 155mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*Handlebar
Size: 49
Bontrager Elite Gravel, 38cm width
Size: 52
Bontrager Elite Gravel, 40cm width
Size: 54, 56
Bontrager Elite Gravel, 42cm width
Size: 58, 61
Bontrager Elite Gravel, 44cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Brake
SRAM Apex hydraulic disc, flat mount
Brake rotor
SRAM Paceline, rounded, centerlock, 160mm
Brake lever
SRAM Apex, 12 speed
Rotor size
Max brake rotor sizes: 160mm front & rear
