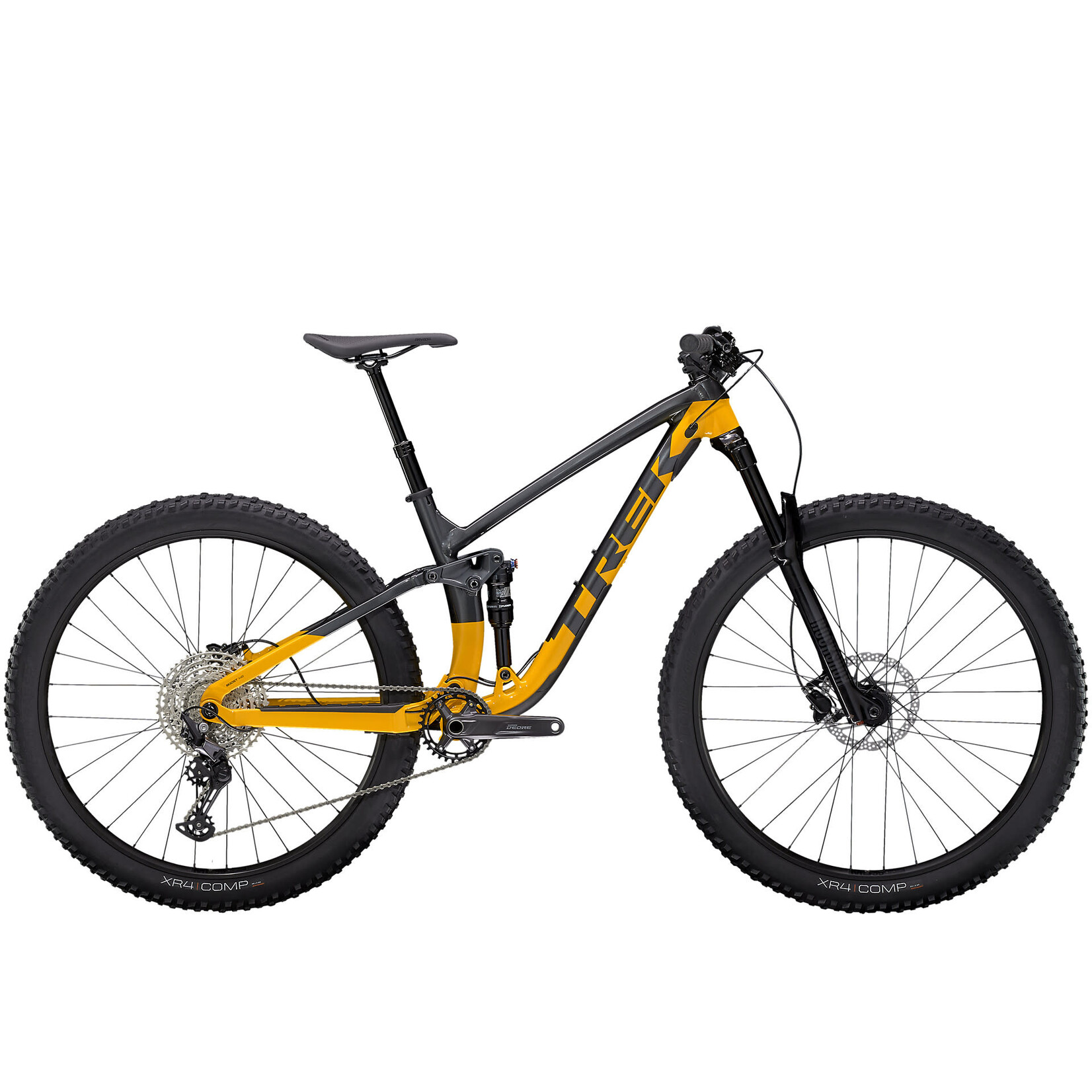

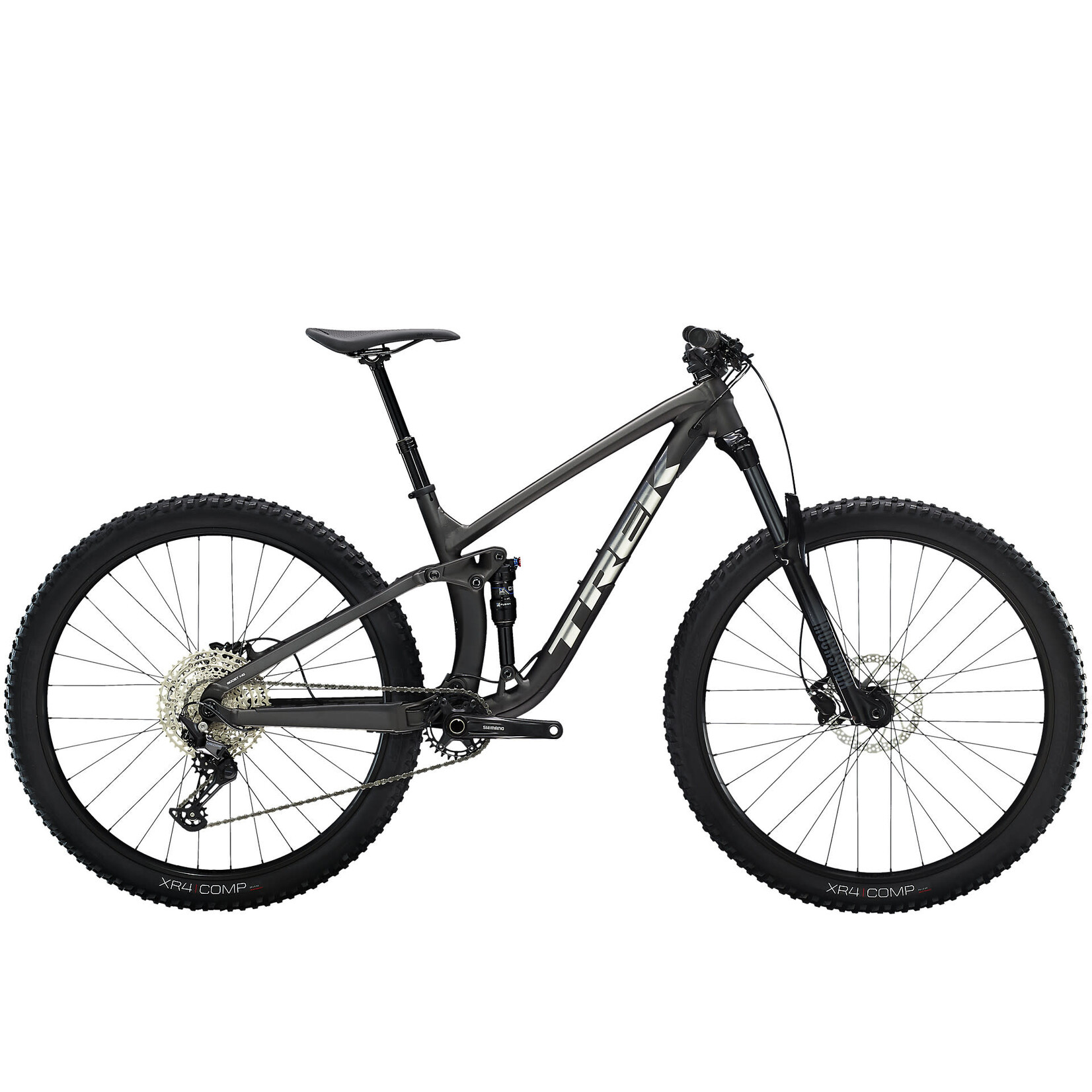

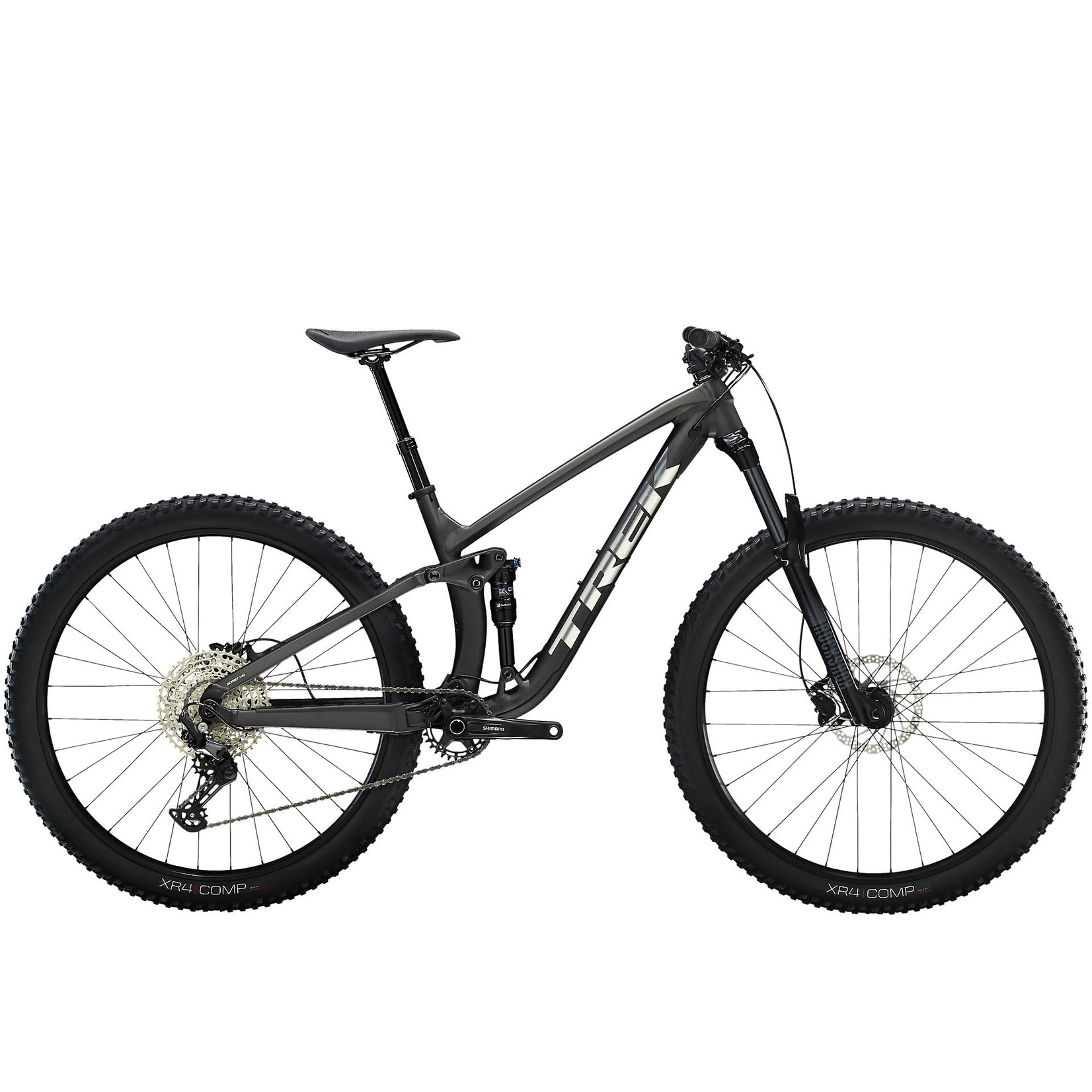

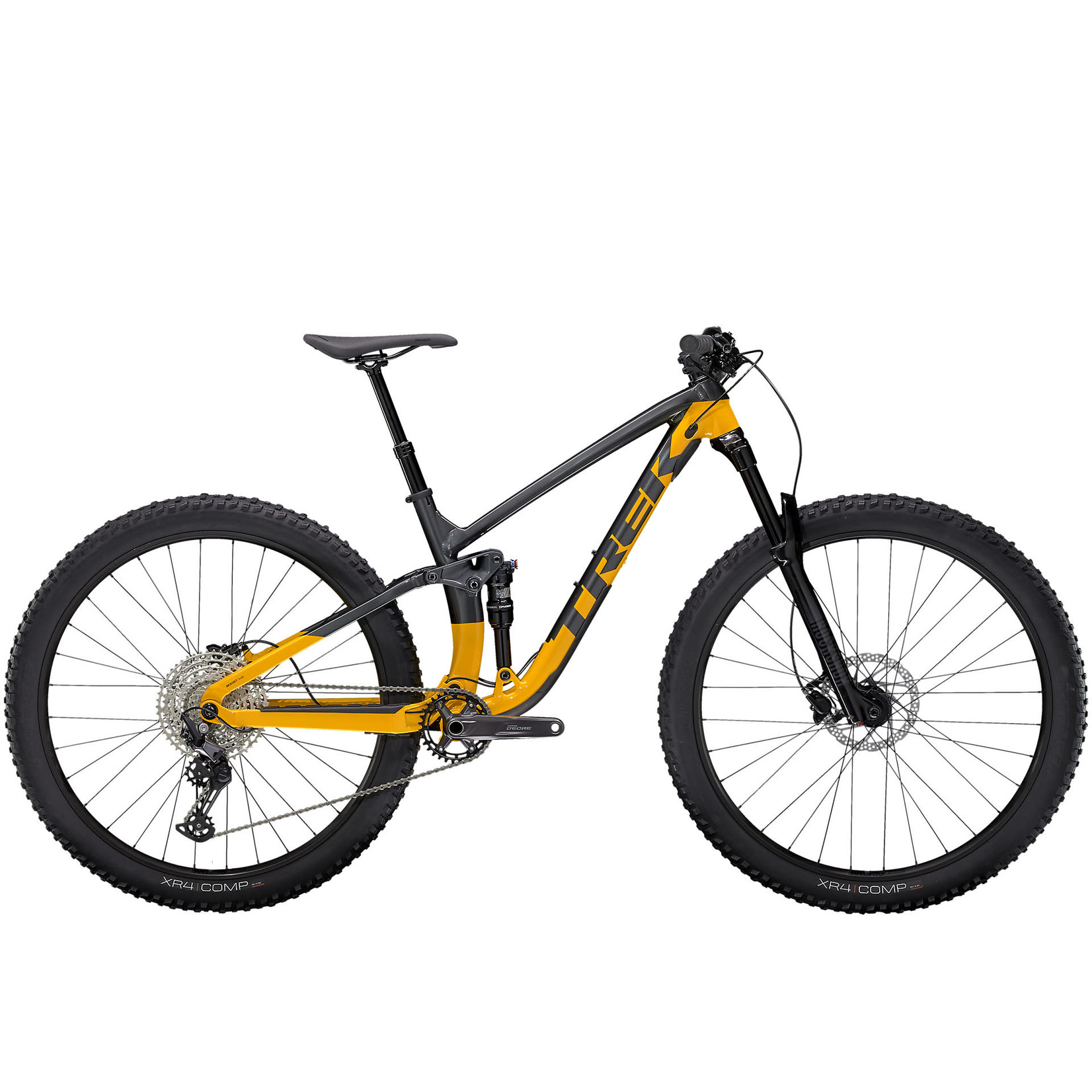

Trail-taming 140mm front and 130mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming 140mm front and 130mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
You're ready to go full suspension, and you want a versatile trail bike at a great value. You want a ride that's sure-footed, capable, and responsive so you can stay in control no matter where you're riding.
A sturdy aluminum frame with a Knock Block steerer stop to protect against spinning bars. A 140mm RockShox Recon Silver fork, 130mm of rear travel with an X-Fusion Pro 2 shock, a durable 12-speed Shimano Deore drivetrain, dropper post, and hydraulic disc brakes.
You get full suspension performance without the sticker shock. Fuel EX 5 has the same proven frame technology that riders have loved over the years, with parts chosen to keep the price tag low and stoke level high.
Frame | Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel |
---|---|
Fork | RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel |
*Shock | Size: XS , S X-Fusion Pro 2, 2-position damper, 210mm x 52.5mm |
Size: S , M , ML , L , XL , XXL X-Fusion Pro 2, 2-position damper, 210mm x 55mm |
|
Max compatible fork travel | 150mm (561mm axle-to-crown) |
Hub front | Bontrager alloy, 6-bolt, Boost110, 15mm thru axle |
---|---|
*Hub rear | Size: XS , S , M , ML , L , XL , XXL Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle |
Size: XS , S , M , ML , L , XL , XXL Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
|
Skewer rear | Bontrager Switch thru axle, removable lever |
Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
Spokes | 14g stainless steel |
*Tire | Size: XS , S Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60'' |
Size: S , M , ML , L , XL , XXL Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60'' |
|
Size: S , M , ML , L , XL , XXL Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60'' |
|
Rim strip | Bontrager TLR |
Max tire size | Frame: 29x2.60" Fork: See manufacturer |
Shifter | Shimano Deore M6100, 12 speed |
---|---|
Rear derailleur | Shimano Deore M6100, long cage |
*Crank | Size: XS , S , M , ML , L Shimano MT511, 30T steel ring, 52mm chainline, 170mm length |
Size: M , ML , L , XL , XXL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
|
Bottom bracket | Shimano MT500, 92mm, PressFit |
Cassette | Shimano Deore M6100, 10-51, 12 speed |
Chain | Shimano Deore M6100, 12 speed |
Max chainring size | 34T |
Saddle | Bontrager Arvada, steel rails, 138mm width |
---|---|
*Seatpost | Size: XS , S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
Size: M , ML , L , XL , XXL TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
|
Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Grips | Bontrager XR Trail Comp, nylon lock-on |
Stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Brake | Shimano hydraulic disc, MT201 lever, MT200 caliper |
Brake rotor | Shimano RT56, 6-bolt, 180mm |
Weight | M - 15.70 kg / 34.62 lbs |
---|
