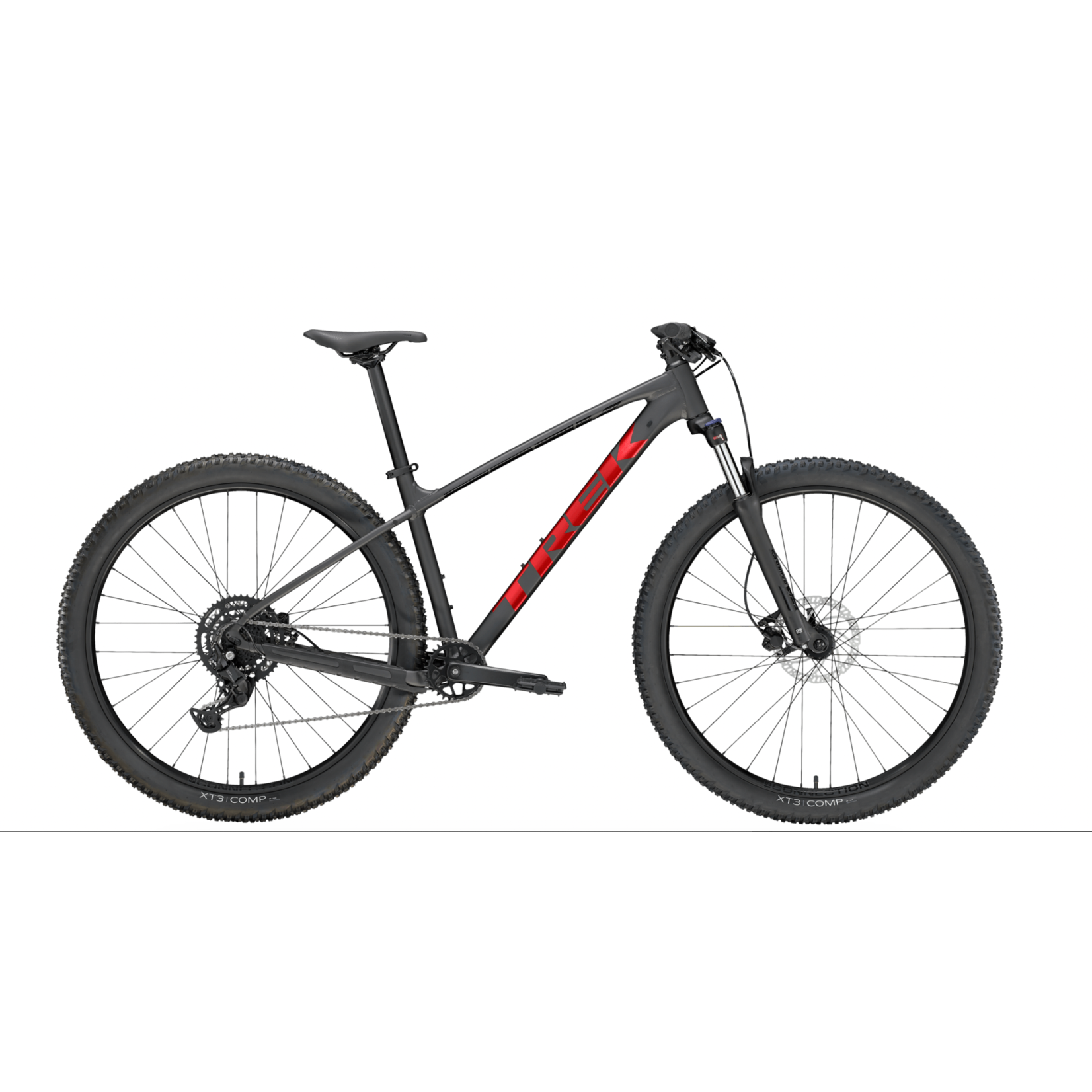

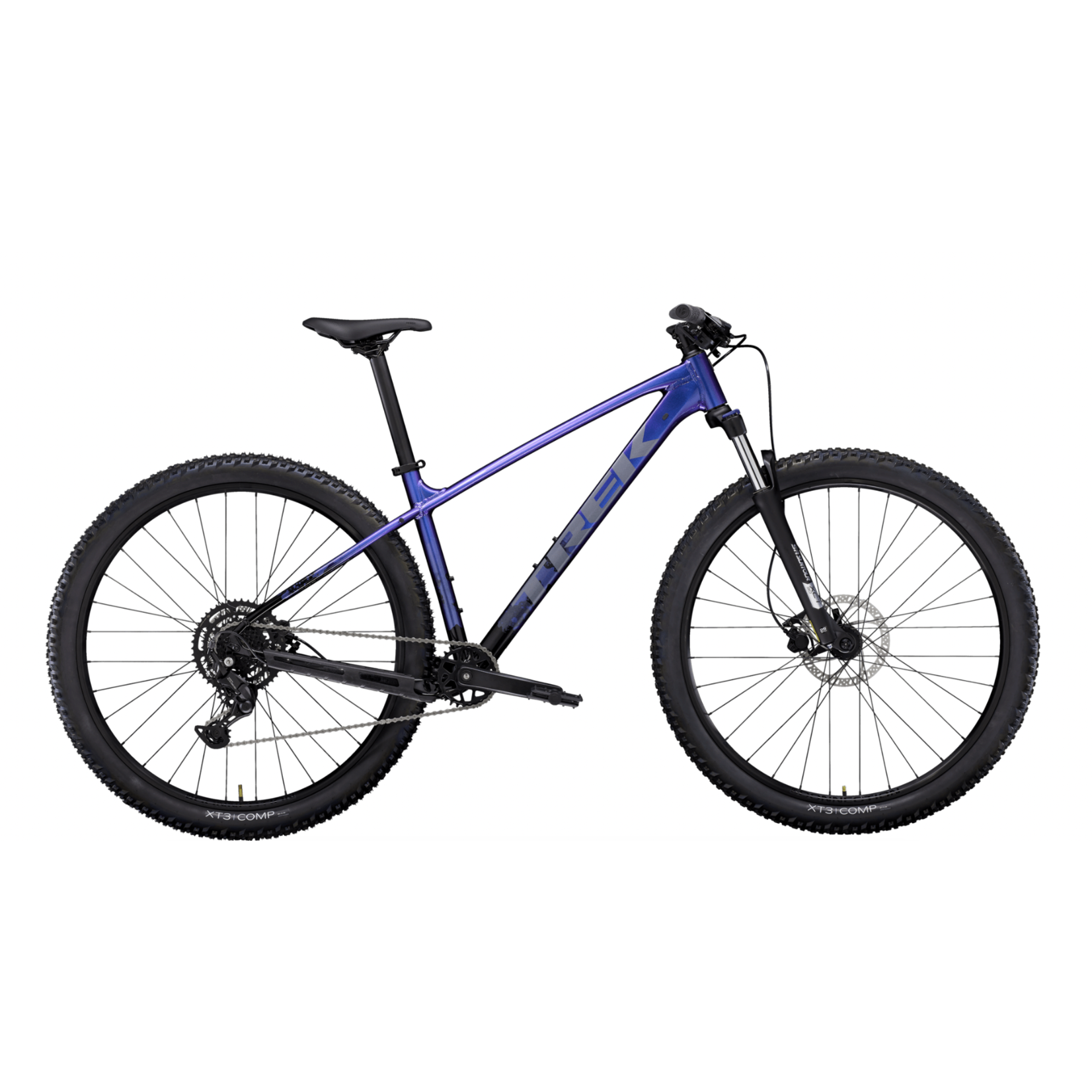

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter — and you want it all at an exceptional value.
A lightweight aluminum frame with internal routing to protect your cables and add to the bike's sleek look, an upgraded 9-speed Shimano CUES drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.
Marlin 5 is a great ride for all your adventures. It's also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.
| *Frame |
Size: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
Size: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
| *Fork |
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
Size: M , ML , L , XL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Max compatible fork travel |
120mm, XXS: 80mm |
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Skewer rear |
173x5mm QR |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Spokes |
14g stainless steel, black |
| *Tire |
Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40'' |
Size: M , ML , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'' |
| Max tire size |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Shifter |
Shimano U4000, 9 speed |
| Rear derailleur |
Shimano CUES U4000 |
| *Crank |
Size: XS
Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length |
Size: S , M , ML
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length |
Size: L , XL
Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length |
| Bottom bracket |
VP BC73, 73mm, threaded cartridge |
| Cassette |
Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain |
Shimano LG500, 9/10/11 speed |
| Pedal |
VP-536 nylon platform |
| Max chainring size |
1x: See FAQ, 2x: 36T, 3x: 42T |
| *Seatpost |
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| *Handlebar |
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length |
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Headset |
Semi-integrated, 1-1/8'' |
| Brake rotor |
Tektro, 6-bolt, 160mm |
| *Brake Set |
Size: XS , S
Tektro HD-M276 hydraulic disc, short reach |
Size: M , ML , L , XL
Tektro HD-M275 hydraulic disc |
| Rotor size |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight |
M - 15.10 kg / 33.29 lbs (with tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
