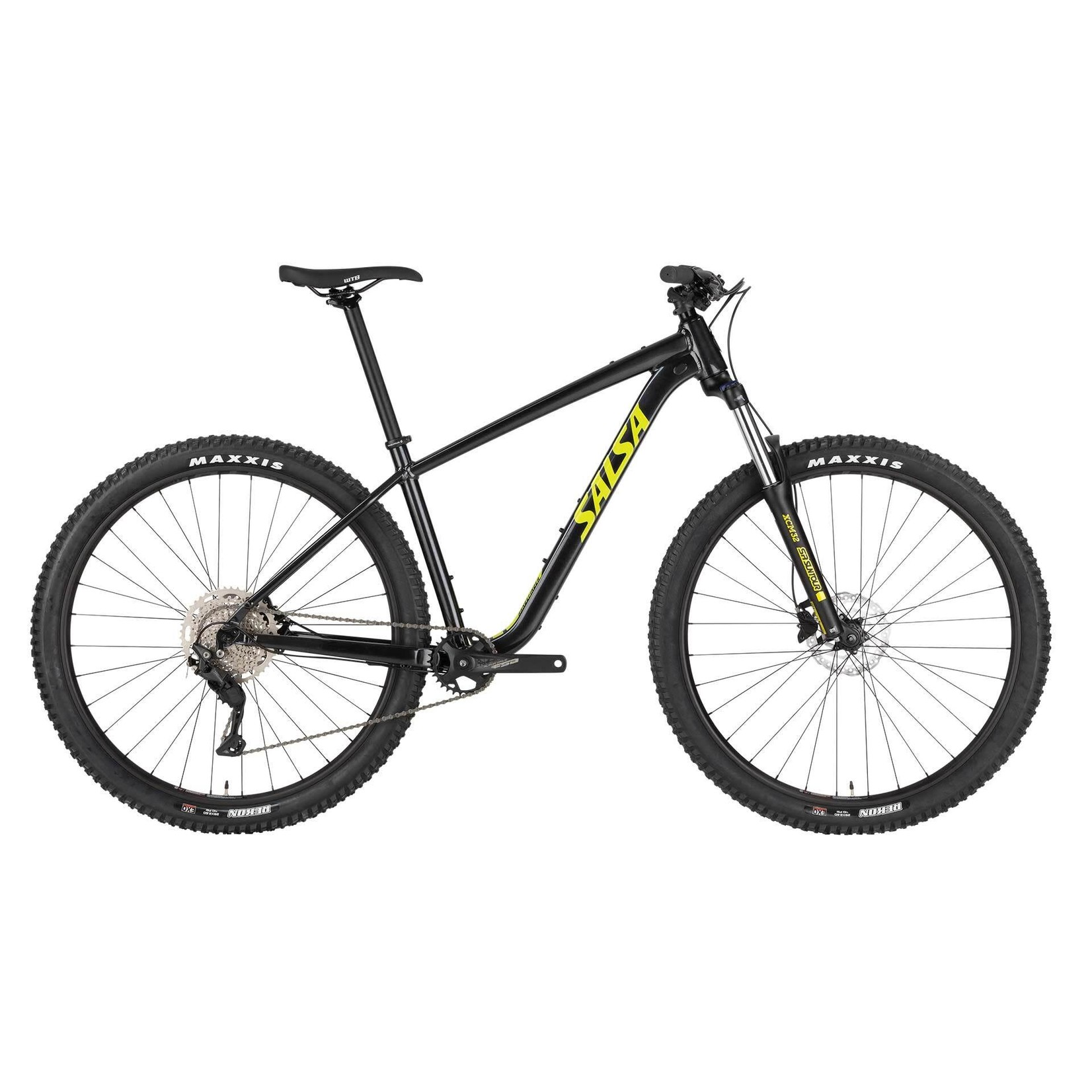

Rangefinder Deore 10 29 opens up the beautiful world of mountain biking. Take to the trail with frame geometry that puts you in complete control through descents, rock gardens, and other trail obstacles. A 120 mm suspension fork takes the edge off of rocks and roots, while the 29 x 2.6” wheels and tires help you roll right over them. The Shimano Deore 10-speed drivetrain provides countless miles of trouble-free performance, for a reliable 29er hardtail that’s always ready to ride when you are.
FRAMESET
- Frame
- Rangefinder Aluminum
- Fork
- SR Suntour XCM32 Boost, Coil, NLO, DS, 120 mm OR RST Alpha 110-15 Coil MLC, 120 mm
- Color
- Black
- Rear Shock
- N/A
DRIVETRAIN
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore M5120 SGS
- Cassette
- Shimano Deore M4100 11–46t, 10-speed
- Chain
- Shimano HG54
- Crankset
- FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
- Shifter
- Shimano Deore M4100
- Brakes
- Shimano MT200 OR Tektro M520 OR Promax DSK-925
- Rotors
- Shimano RT10 Center Lock rotors (160 mm)
COMPONENTS
- Headset
- FSA Orbit NO.57B 1.5 ZS
- Stem
- Salsa Guide 31.8, 60 mm, 6d
- Handlebar
- Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
- Grips
- Salsa File Tread
- Seatpost
- Salsa Guide 30.9, 0 offset
- Saddle
- WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
- Front Wheel
- Shimano MT400 Center Lock 15 x 110 mm TA hub, WTB ST i30 32h 29" rim
- Rear Wheel
- Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
- Tires
- Maxxis Rekon 29 x 2.6", EXO, Wire Bead (not tubeless compatible)
WEIGHT
- Complete Bike Weight
- 32 lb 8 oz (with tubes, no pedals) for Medium
