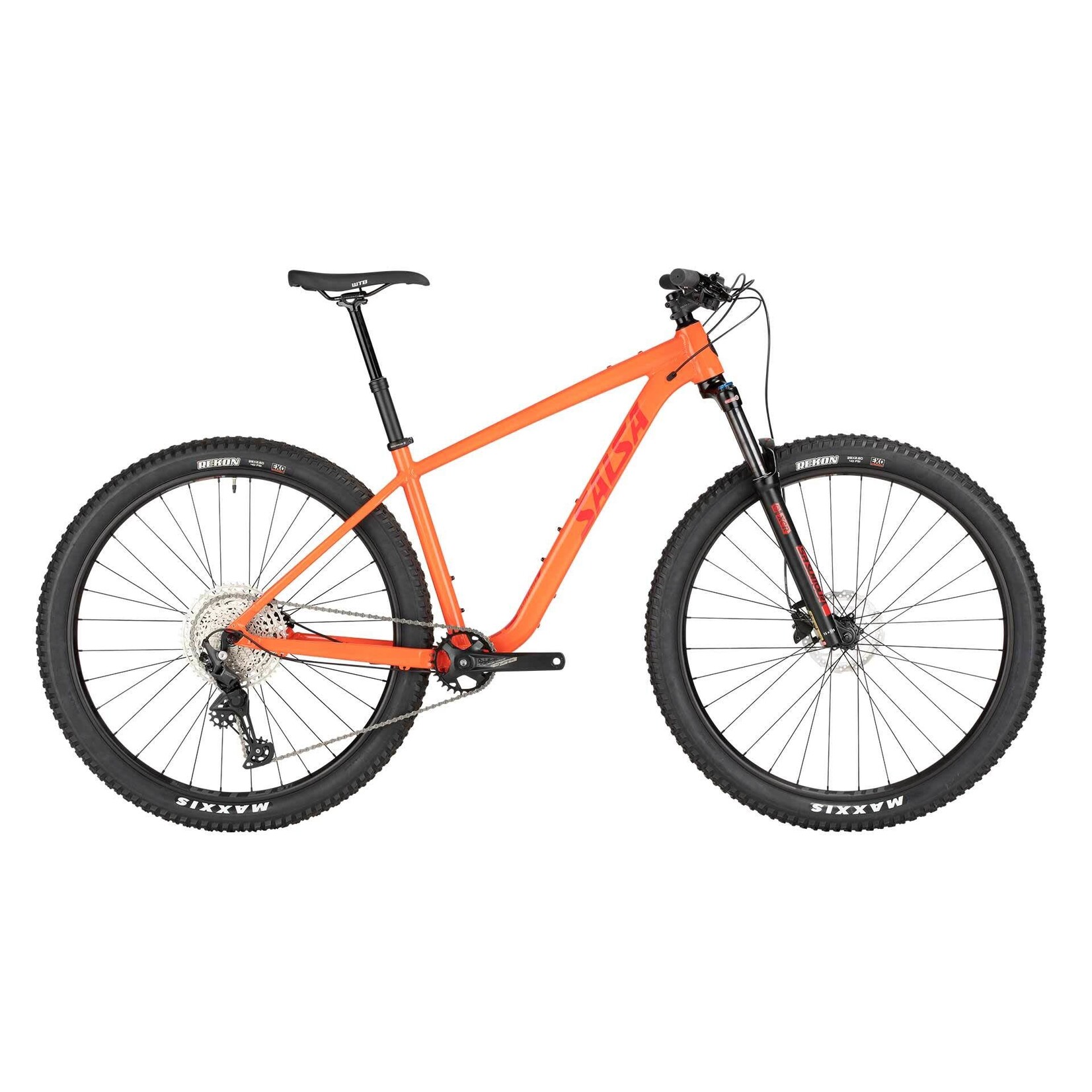

Rangefinder Deore 11 29" is a true trail hardtail companion for your local loops and weekend adventures to off-road destinations far and wide. The stable trail geometry puts you in a position to climb, descend, and pedal through technical spots with assurance. The 120 mm suspension fork and dropper post give you the control to make easy work of many trail features. 29” wheels help you maintain momentum and 2.6”-wide tires keep you planted to the trail. Shimano’s 11-speed Deore drivetrain delivers smooth shifting and gear range that’ll serve you well while climbing, pedaling through flat sections, and everything in between.
FRAMESET
- Frame
- Rangefinder Aluminum
- Fork
- SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm
- Color
- Orange
- Rear Shock
- N/A
DRIVETRAIN
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore M5100 SGS
- Cassette
- Shimano Deore M5100 11–51t, 11-speed
- Chain
- Shimano HG601
- Crankset
- FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
- Shifter
- Shimano Deore M5100
- Brakes
- Shimano MT200 OR Promax DSK-925
- Rotors
- Shimano RT10 Center Lock rotors (160 mm)
COMPONENTS
- Headset
- FSA Orbit NO.57B 1.5 ZS
- Stem
- Salsa Guide 31.8, 60 mm
- Handlebar
- Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
- Grips
- Salsa File Tread
- Seatpost
- TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL
- Saddle
- WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
- Front Wheel
- Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i30 32h 29" rim
- Rear Wheel
- Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
- Tires
- Maxxis Rekon 29 x 2.6", EXO Wire Bead (not tubeless compatible)
WEIGHT
- Complete Bike Weight
- 32 lb 1 oz (with tubes, no pedals) for Medium
- *Specification and pricing subject to change without notice.
